- Suitable for temporary or permanent anchorage

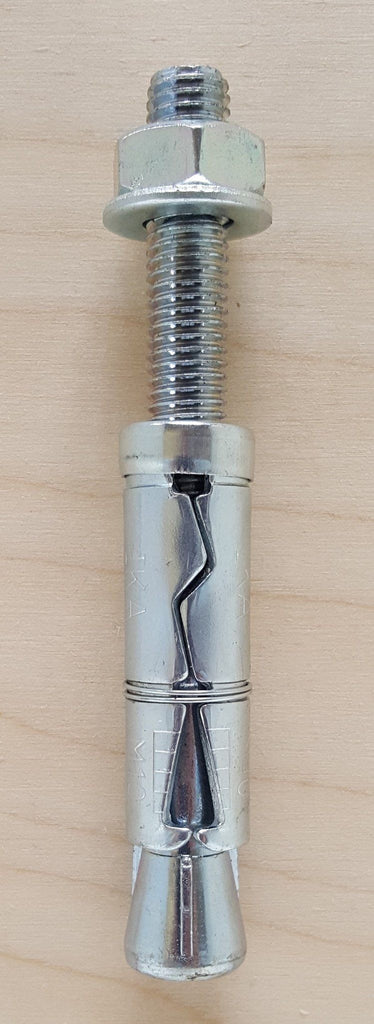

- Supplied complete with shield, washer and hex nut
- Must not be used for safety harness applications or for lifting where shock load could be applied
Features:
- Eye designed and manufactured for maximum performance
- Pressed steel segments ensure consistent dimensional accuracy
- Optimum geometry taper angle for maximum expansion in all substrates
- Bolt Grade 5.8 Steel Zinc Plated for improved shear loading.
Dimensions:
- Bolt Size: M10
- Shield Length: 60mm
- Overall Length: 90mm
- Drill hole diameter in structure: 16mm
- Minimum hole depth: 65mm
- Effective embedment depth: 50mm
- Maximum fixture thickness: 10mm
- Recommended torque in 30N/mm² concrete: 27Nm
- Recommended torque in 20.5N/mm² brickwork: 13Nm
See www.ikafixings.co.za for in depth technical data
