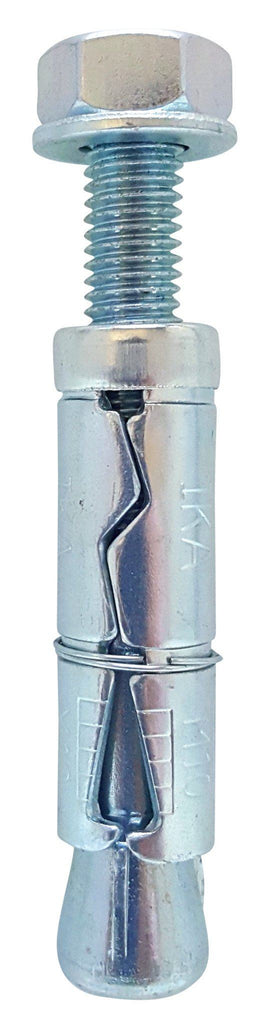

IKA Shield Anchor Expansion Bolt 10 x 90mm for concrete, brickwork & stone

• Suitable for temporary or permanent anchorage
• Supplied complete with shield, washer and hex nut
• Must not be used for safety harness applications or for lifting where shock load could be applied

Features:

• Anchor designed and manufactured for maximum performance
• Pressed steel segments ensure consistent dimensional accuracy
• Optimum geometry taper angle for maximum expansion in all substrates
• Bolt Grade 5.8 Steel Zinc Plated for improved shear loading.

Dimensions:

• Bolt Size: M10
• Shield Length: 60mm
• Overall Length: 90mm
• Drill hole diameter in structure: 16mm
• Minimum hole depth: 70mm
• Effective embedment depth: 50mm
• Maximum fixture thickness: 25mm
• Recommended torque in 30N/mm² concrete: 27Nm
• Recommended torque in 20.5N/mm² brickwork: 13Nm
